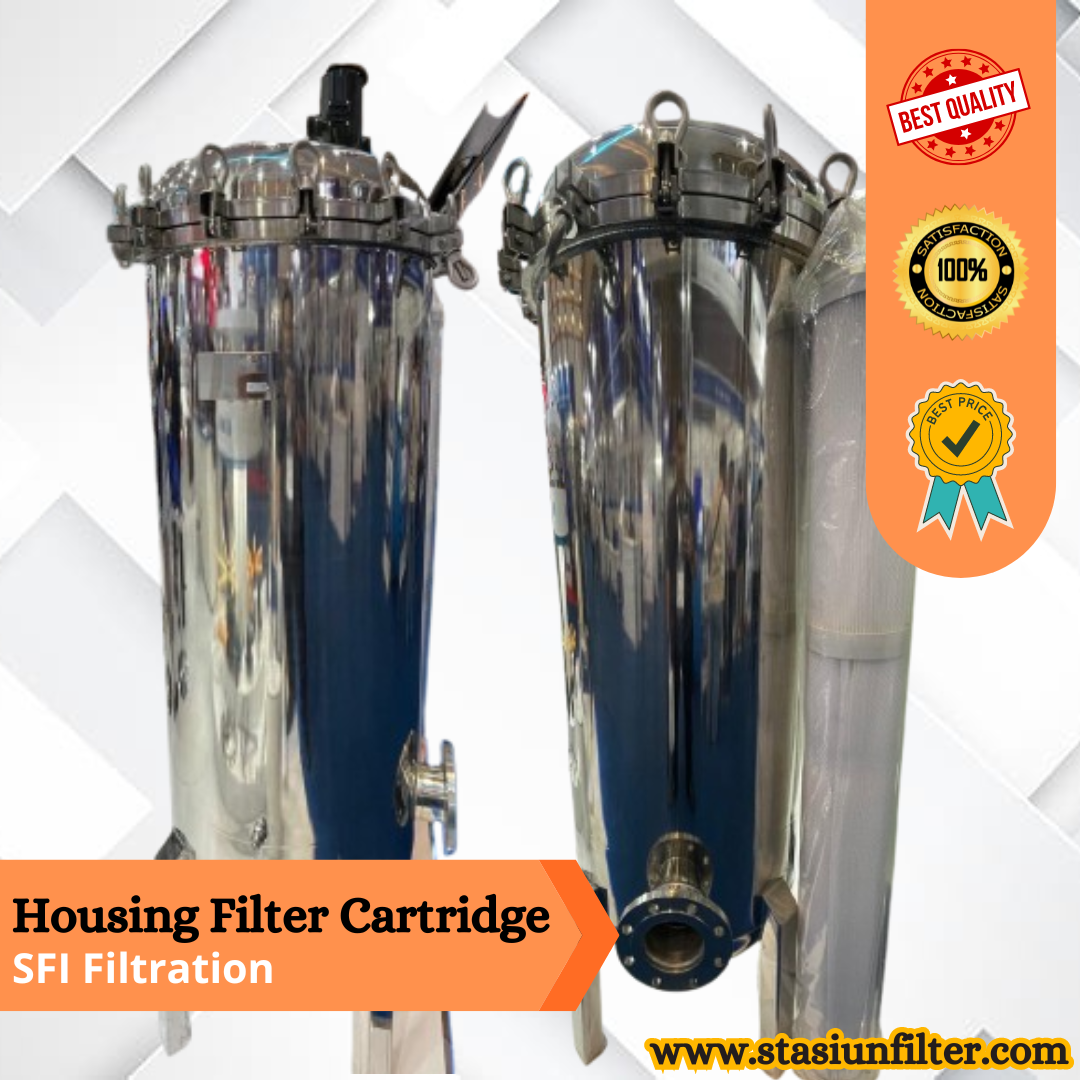

Stainless Steel Housing Multi Cartridge Filter

Stainless Steel Housing Multi Cartridge Filter STASIUN FILTER INDONESIA fast response +62 812-9285-8899 Trust the water filter expert’s Email : sales@stasiunfilter.com stock terlengkap dan harga terbaik.

Stainless Steel Housing Multi Cartridge Filter

Stasiun Filter Indonesia adalah importir distributor agen dan supplier Stainless Steel Housing Multi Cartridge Filter terlengkap menyediakan berbagai kebutuhan spare-part water treatment untuk keperluan industry dengan harga terbaik.

Material of construction Housing Multi Cartridge Filter

Stainless Steel 304 or 316L

Inlet / Outlet :

ANSI Flange is standard, others are optional

Closure :

I Bolt and Nut

Finishing :

Outer – Polished or sand blast surface
Inner – Polished

Sealing :

Silicone / Viton O-ring

Pressure :

Maximum 1.0 Mpa
Continuous operating 0.7 Mpa



Spesifikasi Filter Housing

SFI Housing Cartridge Filter Swing Bolt Model :

Multi Cartridge Filter Housing, swing bolt & nut closure, maximum 10 bar, for DOE and 222 cartridge

Model Size Ukuran Drain In/Outlet Diameter Ketebalan
(ANSI Flange)
SFI DHX-3-10 3 x 10″ 1/4″NPTF 1/4″NPTF 1.5″ 160 1.5
SFI DHX-3-20 3 x 20″ 1/4″NPTF 1/4″NPTF 1.5″ 160 1.5
SFI DHX-3-30 3 x 30″ 1/4″NPTF 1/4″NPTF 1.5″ 160 1.5
SFI DHX-3-40 3 x 40″ 1/4″NPTF 1/4″NPTF 1.5″ 160 1.5
SFI DHX-5-10 5 x 10″ 1/4″NPTF 1/4″NPTF 1.5″ φ219mm 2mm
SFI DHX-5-20 5 x 20″ 1/4″NPTF 1/4″NPTF 1.5″ φ219mm 2mm
SFI DHX-5-30 5 x 30″ 1/4″NPTF 1/4″NPTF 1.5″ φ219mm 2mm
SFI DHX-5-40 5 x 40″ 1/4″NPTF 1/4″NPTF 1.5″ φ219mm 2mm
SFI DHX-7-10 7 x 10″ 1/2″NPTF 1/4″NPTF 2″ φ250mm 2mm
SFI DHX-7-20 7 x 20″ 1/2″NPTF 1/4″NPTF 2″ φ250mm 2mm
SFI DHX-7-30 7 x 30″ 1/2″NPTF 1/4″NPTF 2″ φ250mm 2mm
SFI DHX-7-40 7 x 40″ 1/2″NPTF 1/4″NPTF 2″ φ250mm 2mm

SFI Housing Multi-Filter Duplex

SFI Menggunakan semua model yang tersedia bisa terpakai dengan system Filterisasi Duplex.

Dua unit housing disambungkan pada koneksi inlet outlet dengan menambahkan valve sebagai pengatur airan air. Jadi satu konektor saja bisa dipergunakan dengan 2 unit housing sebagai filterisasi sekaligus.

Untuk permintaan penawaran Stainless Steel Housing Multi Cartridge Filter silahkan hubungi



STASIUN FILTER INDONESIA

Perumahan Legenda Wisata Cluster Lumihous Blok V6/7

Legenda Wisata, Cibubur – Jakarta Timur

Phone : +62812 9285 8899, +62 895-3336-40359

WhatsApp : +62812 9285 8899

Email : sales@stasiunfilter.com
